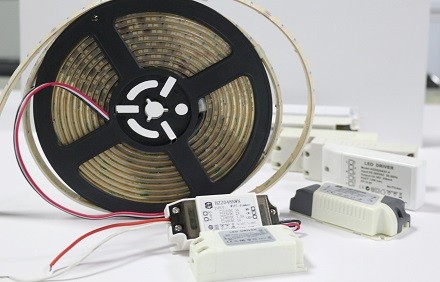

Dimmable LED Driver

DALI Dimming system led driver 12-100w

  • Specification
  • Features
  • Model: HZD020CFX
  • Input voltage: 100-265V
  • Frequency: 50/60Hz
  • Output voltage: 9-18V/18-36V/36-42V
  • Output current: 800MA/450MA/400MA
  • Output Power: 20W
  • Power Factor: 0.93
  • Efficiency: 86%
  • Size: 100.3*42.9*21.3mm
  • Warranty: 5 Years
  • Isolation
  • High PF
  • DALI Dimming
  • Smooth dimmable light
  • CE ROHS FCC
  • Working temperature: -35~+60 ℃
  • Storage temperature: -40~+80 ℃
  • Protections: Short Circuit/Over Voltage/Over termperature
  • Application: ceiling light,panel light,downlight etc.

Download Data Sheet

Description



    This series has 12W-100W Dali Dimming LED drivers to choose from and we also accept customization. The product adopt active PFC circuit scheme, high factor and low harmonic, Full-isolation driver, Fireproof environmental protection PC plastic cover, DALI interface is compatible with high-voltage(100-300V) PUSH dimming, 1-100% arbitrary brightness dimming, smooth dimming effect, output can be off.


Application




                                                                      dali-dimming-for-absorb-dome-light                                                  dali-dimming-system-for-downlight

                                                                   dali dimming for absorb dome light                                             dali dimming system for downlight


                                                                      dali-dimming-led-driver-for-sitting-room-lights                                                  20w-dali-dimming-led-driver-for-ceiling-light

                                                          dali dimming led driver for sitting room lights                        20w dali dimming led driver for ceiling light





Series



Other series--High PF,No-Flicker

24-36W-HZD362CXN

DALI series--High PF,DALI dimmer

20W-HZD020CFX HDL-CC-30-36 HZD024ADI-DA HZD060ADI HZD060ADI-DA

JVN series--Input 170-245V,High PF,Flicker,0-10V dimmer,Non-isolation

150W-HAD150JVN

NWN series--Input 12-36VDC,Wifi dimmer,Non-isolation

48W-HZZ048NWN

FTN series--Input 90-130V,High PF,Flicker,Triac dimmer,Non-isolation

15W-HAD015FTN

KVI series--Input 110 or 220V,High PF,No Flicker,0-10V dimmer,Isolation

36~48W-HZD048KVI

LSI series--Input 110 or 220V,Low PF,No-Flicker,Swicth dimmer,Isolation

10~36W-HZD036LSI

AVI series--Input 85-265V,High PF,No-Flicker,0-10V dimmer,Isolation

5~15W-HZD015AVI 10~30W-HZD030AVI 30~45W-HZD045AVI 48W-HZD048AVI

CVI series--Input 85-265V,High PF,Flicker,0-10V dimmer,Isolation

18W-HZD018CVI 12~24W-HZD024CVI 32W-HZD362CVI-A 24~36W-HZD036CVI 36~48W-HZD048CVI
48~60W-HZD060CVI

MTI series--Input 110 or 220V,High PF,Flicker,Triac dimmer,Isolation

7W-HAD007MTI 10W-HZD010MTI 5~12W-HZD007MTI 12W-HZD012MTI-CC 12W-HZD012MTI-CV
5~18W-HZD018MTI-D 18~24W-HAD024MTI 24W-HZD024MTI-A 24W-HZD024MTI-CC 24W-HZD024MTI-CV
24~36W-HZD036MTI 24~48W-HZD048MTI
